TECHNOLOGY BACKGROUND
mail@kncpumps.com
For many years, the partial-wear and sealing problem of
the polished rod has been paid great attention to. But
few patented technology has solved both of the
problems. On one hand, the sealing probem can be well
solved, but it is not convenient to replace the sealing
packings and it takes long time, thus affecting the
volume of production. On the other hand, the eccentric-
wear for the wellhead can be solved, but the new
problem arises-wear between the polished rod and
tubing (inner side) in the wellbore or the polished rod itself
abrases badly. Another situation, the two problems are
solved, but it is with complicate structure and high cost
as well as high requirements for the installation and
adjustments. It is a big problem existing commonly in
every oil field.

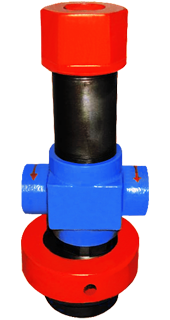

POLISHED ROD STUFFING BOX TECHNICAL FEATURES


1. The universal jonit structure of the stuffing box cooperates
    with the centralizing&protecting bushing and have the
    function of automatical adjustment. The polished rod
    and the center of wellhead are in one line so that the
    polished rod has little wear.

2. The centralizing and protecting bushing plays a role of
    protecting the rod, also has the function of deviation
    adjustment. Therefore, it is with better comprehensive
    deviation adjustment.

3. The advantage of the packing part is that the packing
    can be added generally. No need to take out the old
    packing, thus making full use of the packings and
    reducing the time, but with better sealing.

4. No need to drain the pipeline, the new packings can be
    added. Below the pressure of 3Mpa, the packings can
    not be ejected or leaked, due to the use of 4-8 maya
    buckles.

5. It is with simple structure, low cost, convenient
    installation and repair, but longer service time.

6. It is hard to disassemble the pin (guard against theft
    part) of the below part, so it has good function against
    theft.
*There are some slight differences between the illustrated pictures and the actual object.But it has the same structure and theory. Just for your reference.
Assembly Illustration (as per installation instruction)
Illustrated diagram for the inner part
KN-Series Polished Rod Stuffing Box Structure and Application
Using the spiral polished rod stuffing box
Using the ordinary polished rod stuffing box
TECHNICAL FEATURES
KNC CHINA
KNC CHINA
KNC CHINA
KNC CHINA
KNC CHINA
